Here document (heredoc)

Blocks use heredoc syntax to loop through sections of a survey several times.

set list: PRODUCTS
1. soap
2. dog food
3. clothing

block: <<ENDBLOCK

3X%%ID%%. Have you purchased %%TEXT%% in the past 6 months?
type: radio
1. Yes
2. No

ENDBLOCK
list: PRODUCTS

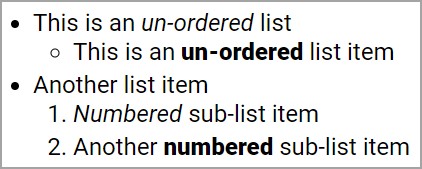

Text widgets such as set text and show text often use heredoc to incorporate HTML or Markdown syntax. The example below uses heredoc to accommodate the line breaks necessary for markdown.

Syntax	Survey page
show text: MY_MARKDOWN markdown: <<END * This is an *un-ordered* list * This is an **un-ordered** list item * Another list item 1. *Numbered* sub-list item 2. Another **numbered** sub-list item END

To specify an inline list of alternative ranks on a ranking question, list the ranks within a heredoc. The present as: pulldown tag must also be included.

set list: REASONS
randomize: y
1. Quality of public schools
2. Neighborhood safety
3. Town amenities (public parks, greenways, etc.)
4. Property values
5. Proximity to work
6. Proximity to friends/family
97. Other {autoother: y; placeholder: specify} {anchor: y}

10. What are the <b>three most important</b> reasons you chose to move to this area?
type: rank
ranks:<<END
1. Most Important
2. Second Most Important
3. Third Most Important
END
optsfrom: REASONS
rank: 3
present as: pulldown

Validations can be written in a single line or in multiple lines. Multi-line validations differ slightly based on whether they are applied to a question or a table.

For questions, if the validations are written in multiple lines and are attached to the question widget, heredoc syntax is required to permit the line breaks.

set list: FRUIT
1. Bananas
2. Grapes
3. Apples
4. Watermelon

1. What fruits do you like?
type: checkbox
optsfrom: FRUIT
validations: <<END
validate: anyChecked($Q1,1)
message: Everyone likes bananas.

validate: anyChecked($Q1,2)
message: Everyone likes grapes.
END

For tables, the multi-line approach permits the use of heredoc syntax in the condition, allowing line breaks within the condition itself, which helps with code readability. The example below uses a single row validation condition tag with heredoc to list multiple validations with a single tag.

set list: GROCERYSTORES
1. Trader Joes
2. Costco
3. Publix

start table: 13
intro: For each store, indicate if you shop there. If you do, please specify the reason for shopping. If you don't, specify the reason you aren't a customer.
row validation condition:<<ENDVAL
(anyChecked($Q13R[id]CA,1) and $Q13R[id]CB ne '') or
(anyChecked($Q13R[id]CA,2) and $Q13R[id]CC ne '')
ENDVAL
row validation message: Please specify the reason for shopping or not shopping.
rowsfrom: GROCERYSTORES
--
column id: A
type: radio
1. Do shop there
2. Never shop there
required: y
--
column id: B
type: text
size: 15
required: n
heading: Why do you shop there?
--
column id: C
type: text
size: 15
required: n
heading: Why don't you shop there?
end table

Heredoc can be used in a list call to improve readability of long conditional statements. The list name appears on a separate line after the insertion operator <<, and multiple decorators can be included. Once all logic is written, end the heredoc on the last line.

RESTAURANTS. Variable to select max 3 restaurants
type: checkbox
selectby: weight, counts
lock: y
maxgroups: 3
optsfrom: <<OPTS
RESTAURANT_LIST
{if
(noneChecked($QREST,[id]) and
anyChecked($QEVEREATEN,[id])) or
(noneChecked($QREST,[id]) and ([priority1])) or
anyChecked($QMAIN,[id])
}
{weight:
anyChecked($QMAIN,[id]) * 1000 +
anyChecked($QEVEREATEN,[id]) * 100
}
OPTS
